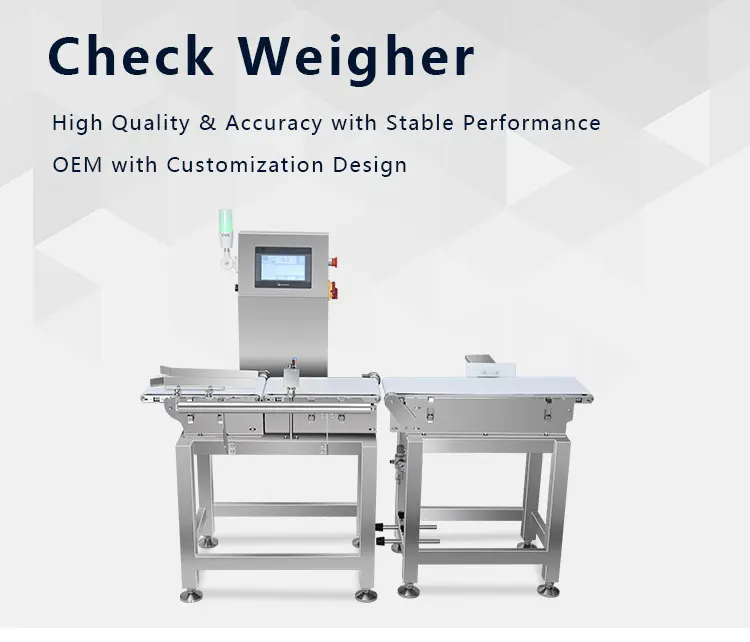

DYX-CW808Conveyor Belt Food Packaging Line Weight Checker Check Weigher with Rejector
Range :Fe/non-Fe/sUs
Accuracy :Fe 0.8mmCu 1.5mm SUS 1.5mm
Weight: :About 200kg
Dimension:1600 920*1000mm(L*W*H)
Power supply.AC110V/220V 50-60HZ
Power::220V 50Hz 120W
Moterial:304 Stainless steel

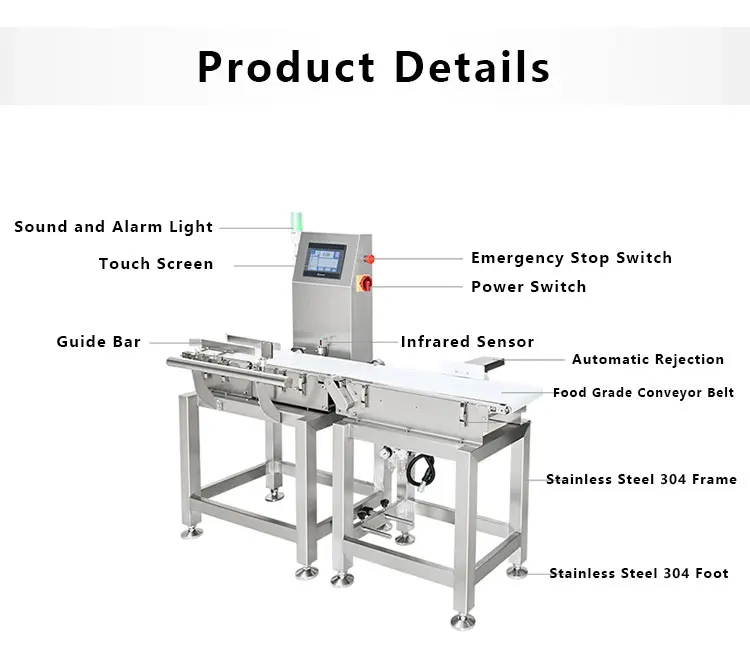

Product Description
Product Description
Application:
Check weigher machine can check packed products’ weight online whether their weights are overweight or less-weight to ensure the weight of products to meet standards. Check weigher is automatic device that used to check the products’ weight in automatic packing production lines, and it can check products in a continuous working process which weight accords with the standard weight we set or not. Also, the check weigher can automatically reject unqualified products.

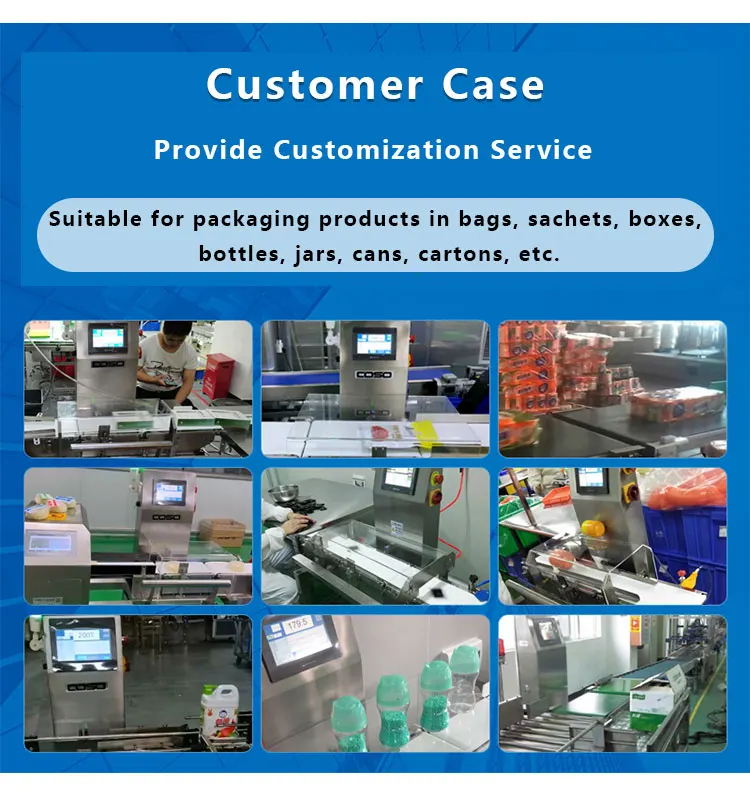

Check weigher is widely used in electronic hardware, pharmaceutical, food, chemical, beverage, health care products, and many other industries. For example, it can be used in food industry to check the weight of bread, cake, hams, instant noodles, frozen food, food additives, preservative etc, packaging products like bag, sachet, box, jar, cans, cartons, etc.
Checkweigher substantiates the extensive know-how that the company has accumulated in weighing technology over the years. By including a high-precision weight checking function in the production line, your product quality can improve without any decline in efficiency. The series provides a whole range of features for handling different products, and incorporate new functions in response to modern necessities.
Coupons
USD 50.00 OFF
Minimum spend of USD 5,000.00 (excl. shipping)
Validity period: 09/11/2024, 12:00 AM – 09/30/2024, 11:59 PM
Get Coupon
| Model | CW150 | CW200 | CW300 | CW400 | CW500 | CW600 |
| Weight Range | ≤200g | ≤1000g | ≤3000g | ≤20Kg | ≤40Kg | ≤40Kg |
| Minimum Scale | 0.01g | 0.1g | 0.1g | 0.1g | 0.1g | 0.1g |
| Accuracy | ±0.2-0.5g | ±0.3-1g | ±0.5-3g | ±1-5g | ±5-20g | ±5-20g |
Speed | 0-70m/m | 0-70m/m | 0-70m/m | 0-60m/m | 0-50m/m | 0-50m/m |
| Product’s Length | 150mm | 300mm | 300mm | 500mm | 650mm | 650mm |
| Product’s Width | 120mm | 180mm | 270mm | 350mm | 440mm | 530mm |
| Power | 0.1KW | 0.15KW | 0.4KW | 0.4KW | 0.4KW | 0.4KW |
| Power Supply | AC220V/110V ± 10% 50/60Hz | |||||

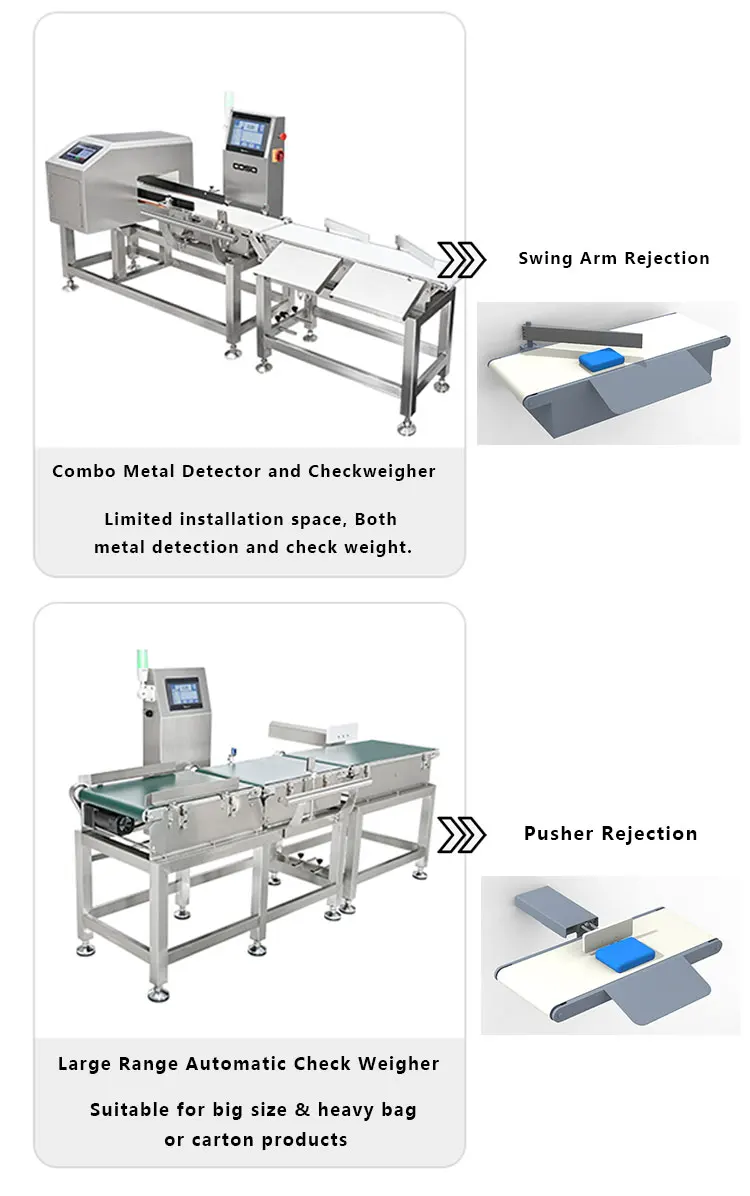

| Rejection | Air Blowing/Pusher/Swing Arm/Flap/Sinking Conveyor Rejection | |||||
| Operation Panel | Touch Screen | |||||
| Compressed Air | 0.6-1Mpa | |||||
| Material | SUS304 | |||||
Main Function:
- Easy Integration: adjustable height, modular design
•Sturdy and robust construction: Stainless Steel 304
•Easy to use: touch screen operating system is easy to use with user password protection
•Easy to clean: detachable belt easy to to take apart for cleaning and set up.
•Variable Speed: Speed configurable based on application

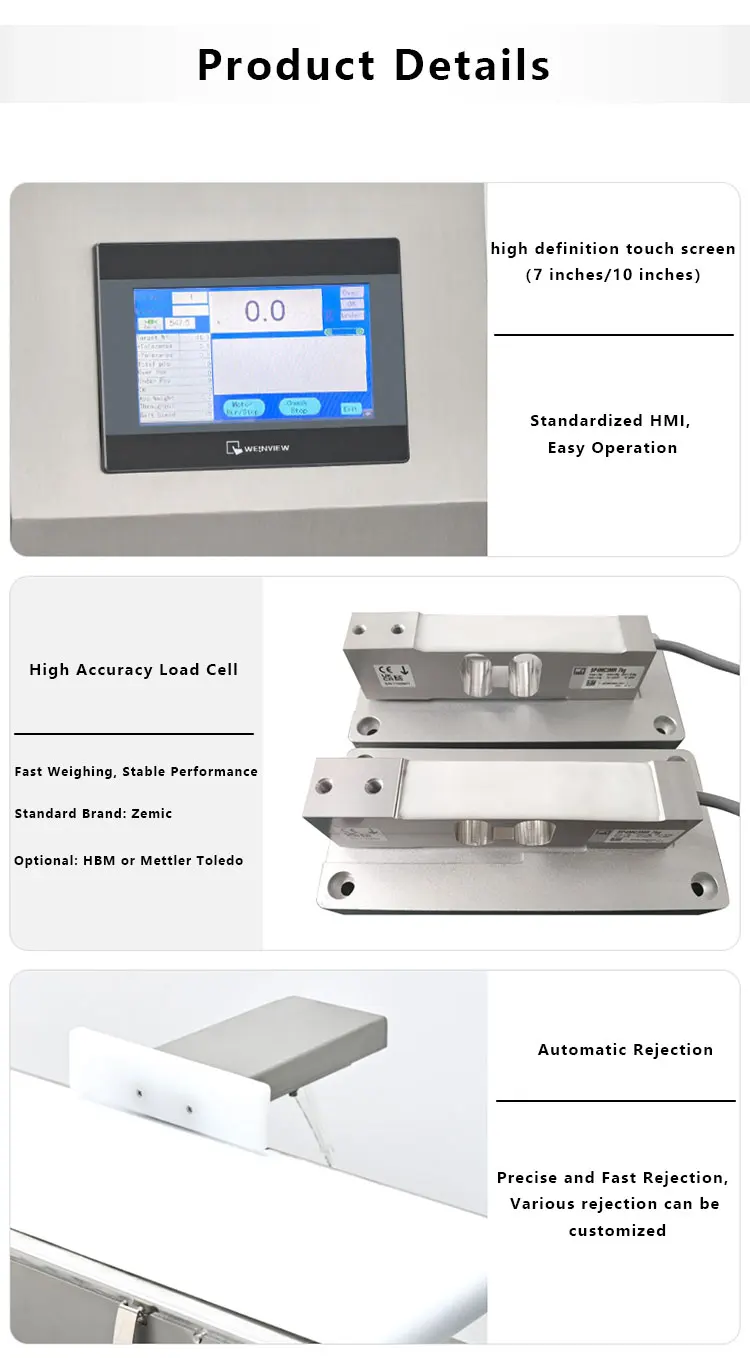

•High Speed and Accuracy: equipped with high grade sensor and load cell with ultra fast processor for excellent accuracy and speed
•Zero Trace: Manual and Automatic Calibration, increase accuracy - Report and Data Exportation: Built-in real time report, exportable to Excel file, storing up 1 year production data in USB disk
•Connectivity: standard ports for data exportation and connect to PC
•Self-learning: no need to calibration, system will find the best set up for the product. Configurable up to 2000 product settings
•Different Detection Modes: Default Mode, Static Mode, Power saving mode
•Faulty report: The system can detect and report faulty part of the system makes it easy to diagnose problems
•Output Ports: RS-485 and RS-232, able to Connect with printers and label machines
